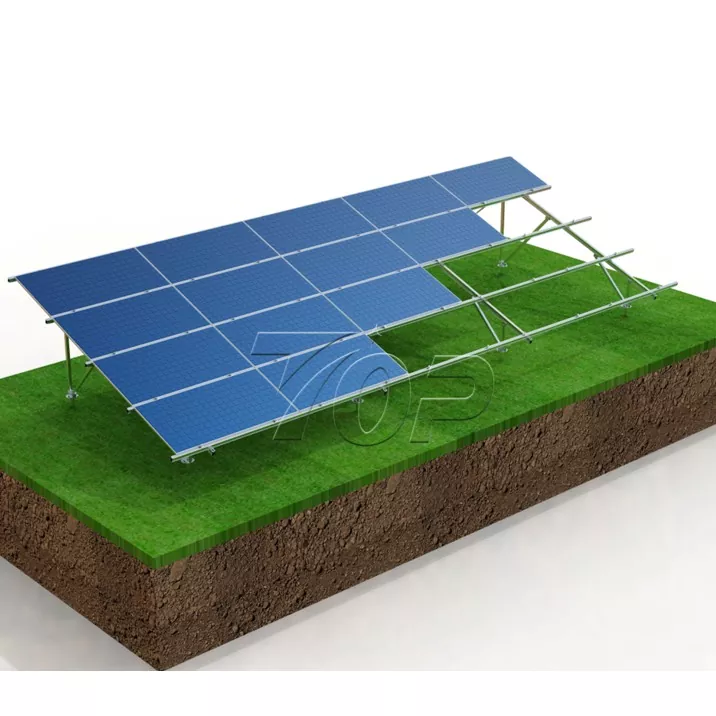

Алюминиевая заземленная солнечная система крепления

Сотрудничая с Topfencesolar в области системы крепления солнечных батарей на алюминиевом основании, мы предлагаем моделирование конструкции с учетом конкретных ветровых и снеговых нагрузок, а также факторов землетрясения. Наша алюминиевая конструкция W-образной формы является одним из самых стабильных и надежных решений, пользующихся наибольшим спросом на рынке. Срок службы составляет более 25 лет, гарантия 10 лет.
Название бренда:Топоградасолнечная
Материал продукта:Алюминий AL 6005 -T5/ T6
Функция продукта:Конструкция наземной солнечной электростанции
Срок службы:≥25 лет

Отправить запрос

Описание продукта

As the professional China manufacturer and supplier, Topfencesolar design of an Aluminum Ground Solar Mounting System with a wind resistance of up to max. 60 m/s and a snow load capacity of up to max. 1.4 kN.

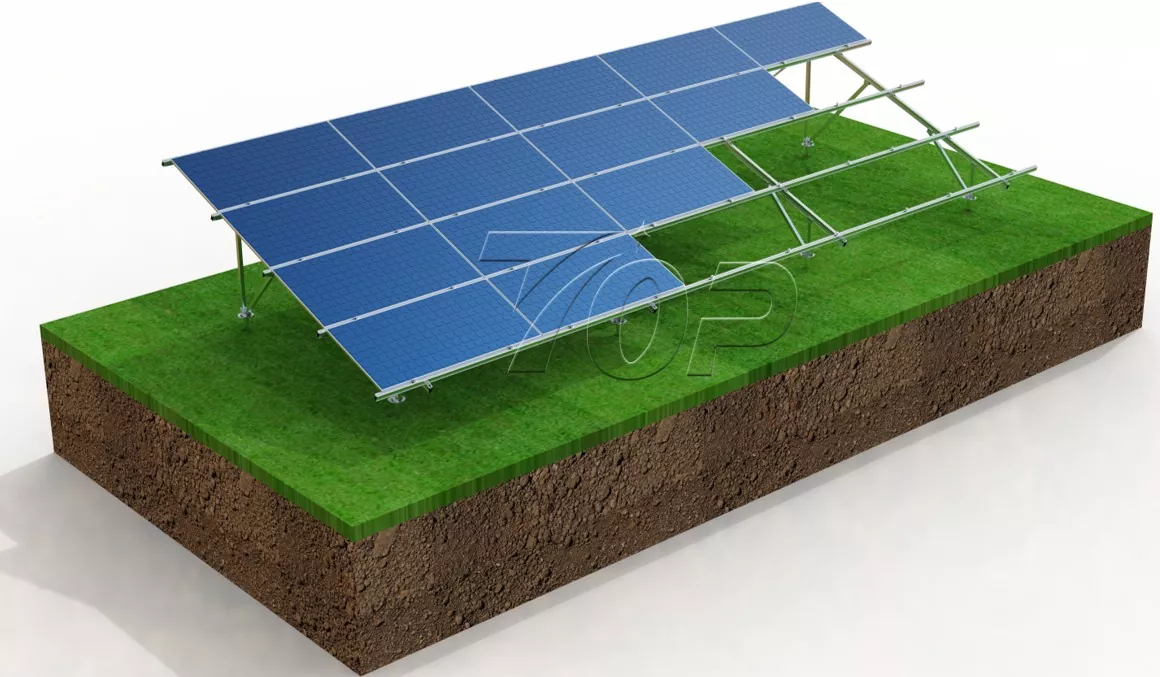

Aluminum Ground Solar Mounting System

How about the corrosion and rust resistance result?

Our system's main materails of column, beam, rear forces and rails are made of Al6005-T5/T6 aluminum with excellent anti corrosion performance by ≥10μm surface treatment processing. The anodization ensures long-term durability in harsh environments.


Base	H Column Connector	Rails	Rail Connector	Beam

While our fasteners of fastening system are made of SUS304 with excellent corrosion protection effectiveness below.


Rail Clamp Kits	Mid-Clamp	End-Clamp	Earth Screw

The complete W Type Ground Solar Mounting Brackets design is based on service life over 25 years with warranty 10 years.

StructuralComposition

Base /H Column Connector/Rails /Rail Connector/Beam /Bolt /Nut /Screw /Washer/

Anchor, etc.

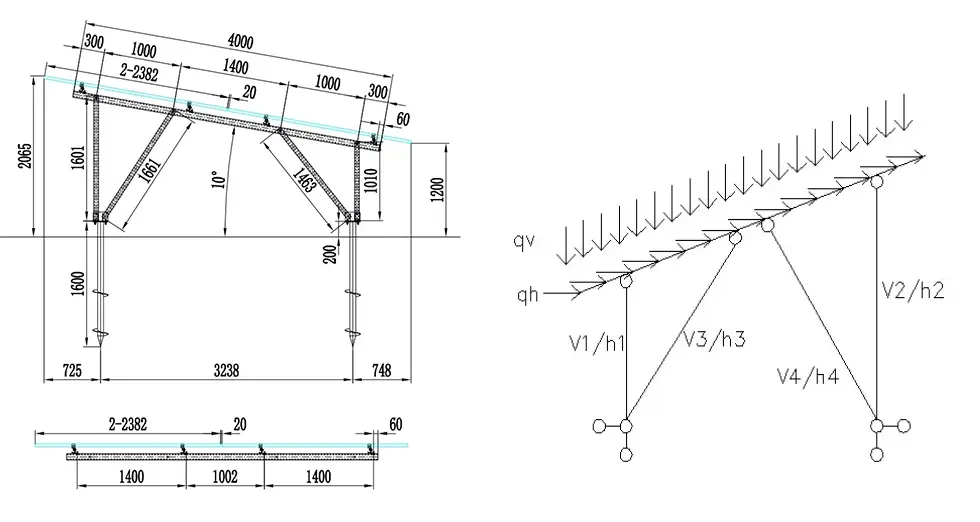

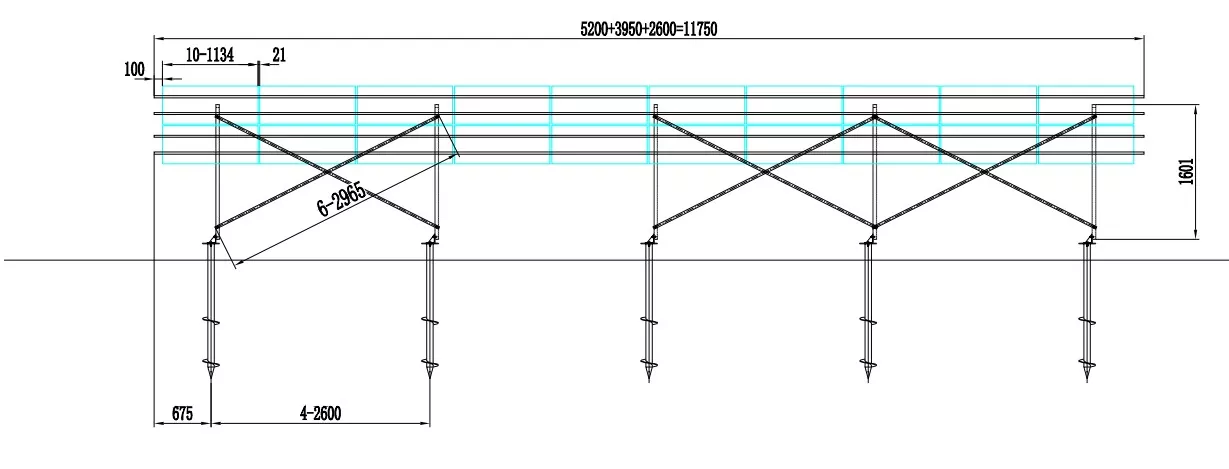

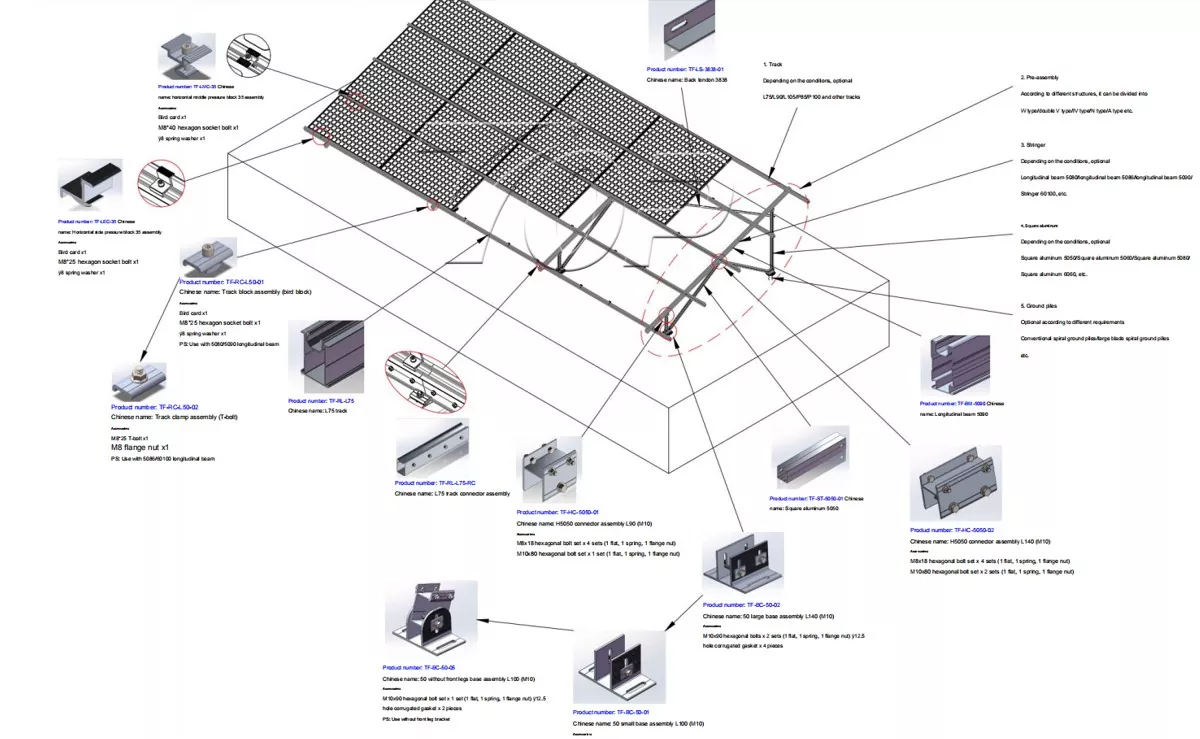

Below is the complete one set of the system diagram design for reference.

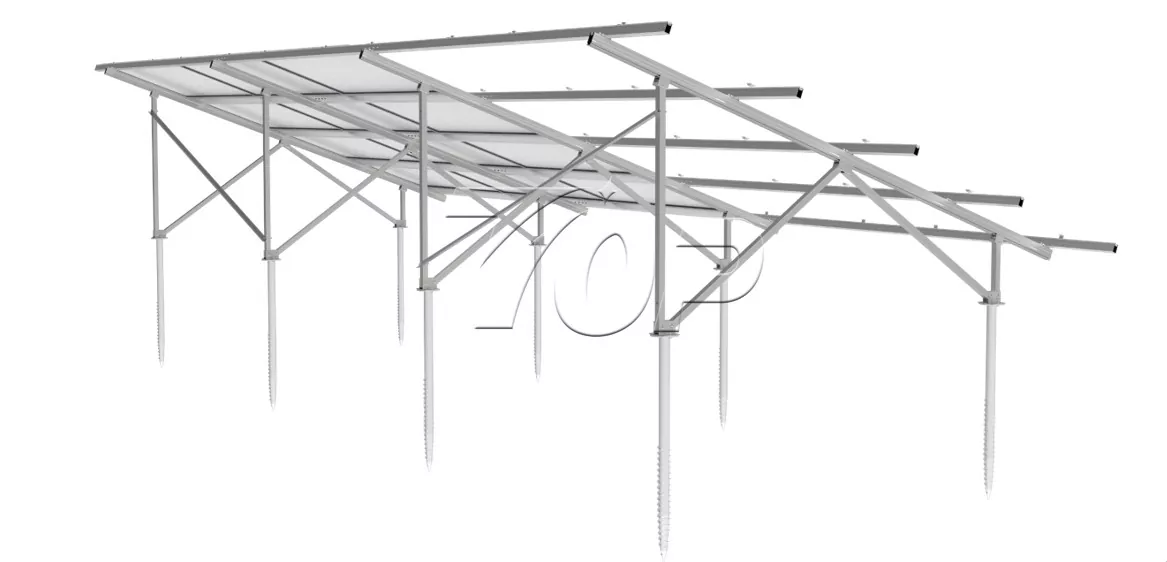

Aluminum Ground Solar Mounting System

How to choose a correct foundation for supporting your solar system?

Appropriate installation methods should be selected based on different foundation types.

Such as:

Concrete Foundations

Ground Screw Foundations

Pile-driven Foundations

The durable Aluminum Ground Mounted Solar Racking System is mainly considered about the soil-bearing capacity requirements of

Slope adaptation

Corrosion protection

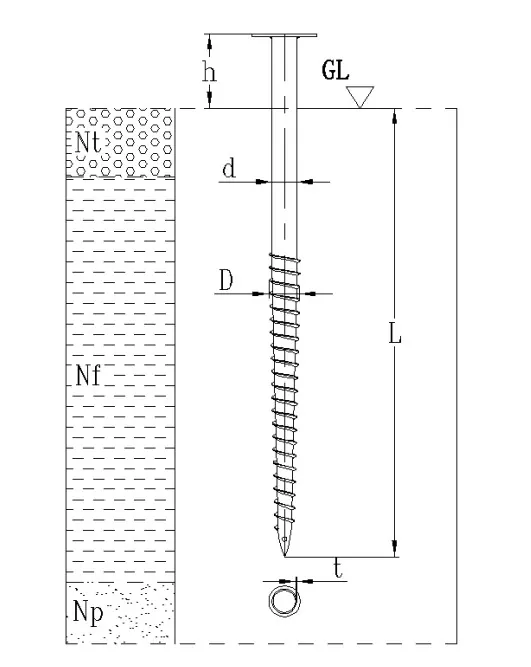

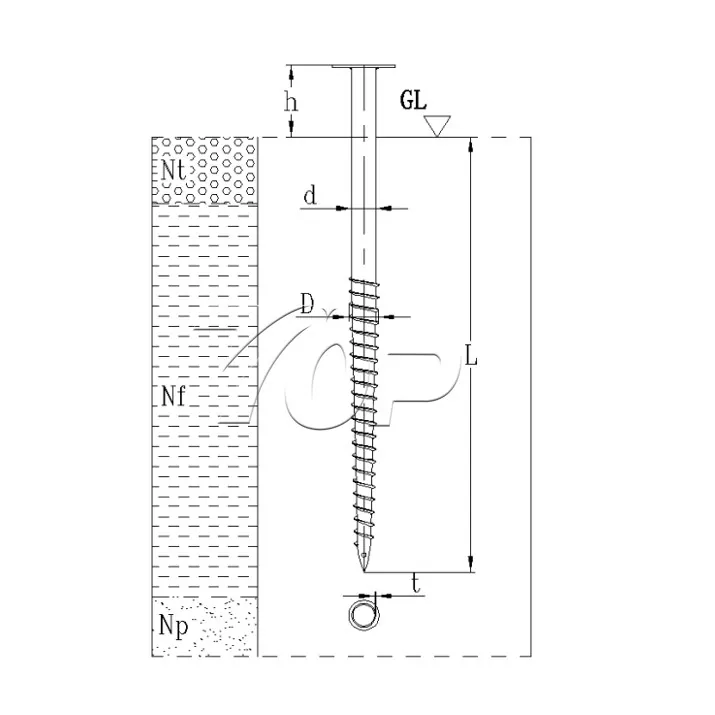

Take Helical Piles for example:

Parameter	Requirement	Example
Shaft Diameter	73mm~140mm	Diameter of89mm steel pip
Helix Plate	Diameter 200mm-350mmbetween1-3 plates	Double helixis300mm at bottom,250mmat top part
Material	Q235B	Strength is over235 MPa
Corrosion Protection	Hot-dip galvanizing ≥85μm	Coastal areas: Zinc coating + sacrificial anode
